If you own a Jeep Grand Cherokee with the V6 diesel, this one’s worth a read. Among our recent Jeep Grand Cherokee diesel repairs was a car with two issues worth keeping an eye on as these engines age: a cooling system leak hiding under the intake, and a failed intake swirl actuator. Both were caught before they could turn into a roadside breakdown or a much bigger repair bill.
The job at a glance
- Vehicle: Jeep Grand Cherokee V6 diesel
- Problem: Failed valley coolant hose, brittle plastic fittings, failed swirl actuator and worn swirl gear
- Fix: Intake removed, failed parts replaced and the system reassembled

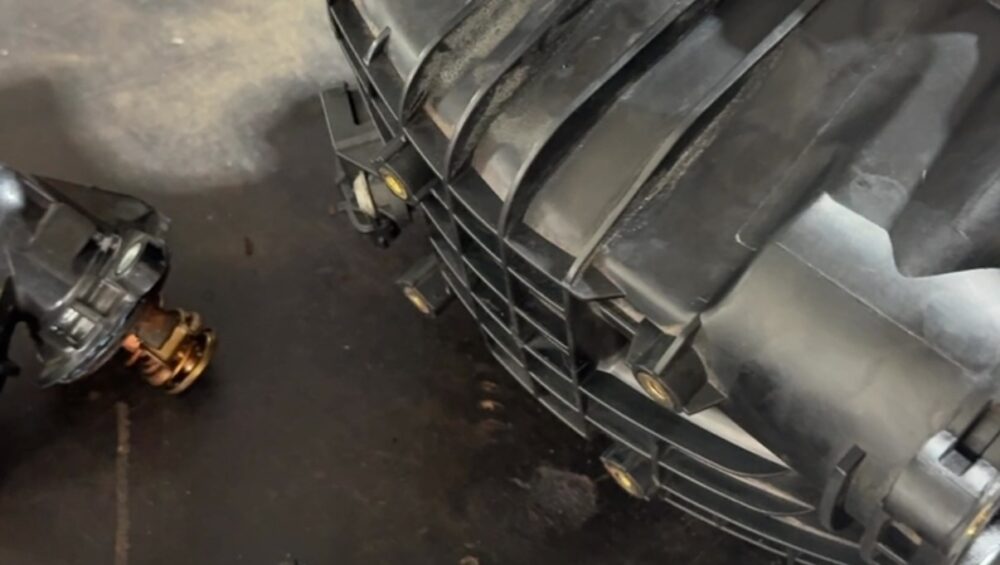

The intake manifold, swirl actuator and failed coolant hose fittings from this Grand Cherokee.
Fault 1: valley coolant hose and brittle plastic fittings
On a V6, the “valley” is the space between the two banks of cylinders. On this engine, coolant hoses and fittings run through that valley, tucked under the intake manifold where you can’t see them.
This Grand Cherokee’s valley coolant hose had failed, and the plastic fittings around it had gone brittle with age and heat. That’s a leak waiting to become a much bigger problem. A small seep can quickly turn into a sudden loss of coolant, and overheating a diesel engine can lead to serious damage.
Signs of a cooling system problem to watch for:
- Coolant level dropping, or needing regular top-ups
- A sweet coolant smell after driving
- Coolant residue or crusty deposits around the top or back of the engine
- The temperature gauge climbing higher than normal
Fault 2: failed swirl actuator and worn swirl gear
The intake manifold on this engine has swirl flaps in the intake runners. They help control how air enters each cylinder, which affects combustion, emissions and how the engine performs at lower revs. An electric actuator moves the flaps through a small gear mechanism.
On this Jeep, the swirl actuator had failed and the swirl gear was damaged and worn, affecting how the intake system worked. Swirl actuator faults can show up as:
- The check engine light coming on
- Reduced power or limp mode
- Rough or uneven running, particularly at low speeds
Jeep Grand Cherokee diesel repairs: how we fixed it
Because the valley hoses sit underneath the intake, both problems were sorted in the same visit. We pulled the intake apart, found the failed components and replaced them, then put everything back together. Doing the jobs together also saves the labour of removing the intake twice.
Can I keep driving with a coolant leak?
It’s not worth the risk. A small leak can become a big one without warning, and a diesel that overheats can suffer a warped cylinder head or a failed head gasket. If your coolant level keeps dropping, keep it topped up with the correct coolant and get it checked as soon as you can.
Why regular inspections matter on older diesels
Plenty of the faults we see on ageing diesels aren’t dramatic failures. They’re rubber hoses, plastic fittings and small actuators that have done years of heat cycles and are close to giving up. A thorough inspection during a service can catch these before they leave you stranded.
If you’ve got a Jeep Grand Cherokee diesel on the Gold Coast, a regular logbook service is the easiest way to keep on top of it. If it’s already showing a warning light, losing coolant or running differently, book in for a diagnosis at our Mudgeeraba workshop or call 0478 499 369.
